Product Details:
|
| Material: | T2 Red Copper | Usage: | Laser Cutting Machine |
|---|---|---|---|
| Caliber: | 0.8-4.0mm | Layer: | Single / Double |
| Diameter: | 28mm / 32mm | Condition: | New |
| Mob/Wsap: | +86 15253270037 | E-mail: | Topbright@yeah.net |
| Highlight: | D32 Straw Hat Laser Nozzle,Laser Nozzle 4mm Caliber,D32 Laser Engraving Machine Parts |
||

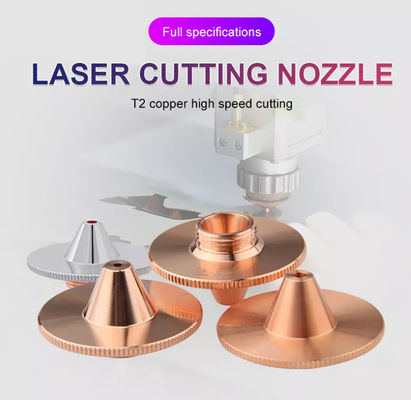

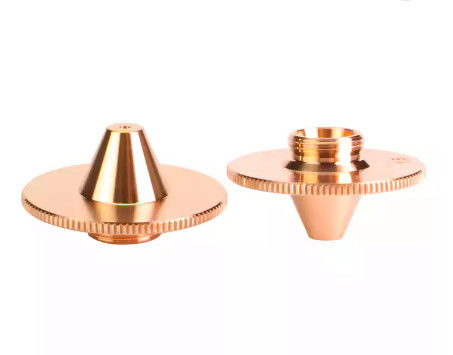

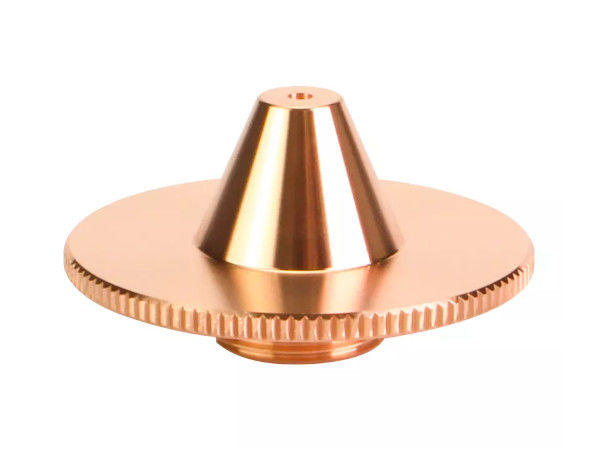

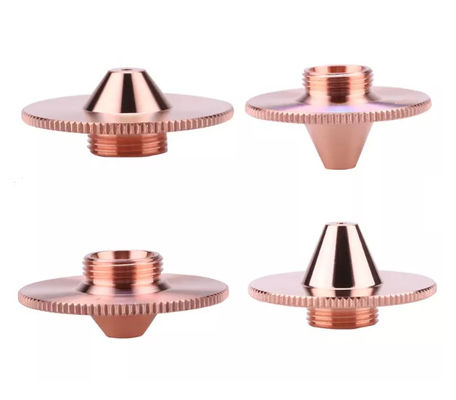

Laser Nozzles Single Double Layer Nozzle Straw Hat Shape For Fiber Laser Cutting Machine Head
Fiber lazer cutter nozzle contact tips
D32 Straw Hat Laser Nozzle 4mm Caliber Laser Engraving Machine Parts
Material:High quality copper
Single Layer: Use nitrogen and air as auxiliary gas to cut stainless steel plate, aluminum plate, copper plate, etc.
Double layer: Use oxygen as auxiliary gas to cut iron plate, etc.
Caliber: 0.8, 1.0, 1.2, 1.4, 1.5, 1.8, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0mm etc
Application:For Precitec WSX Raytools Precitec CNC Fiber Laser Cutting Engraving Welding Machine Head.
High hardness and corrosion resistance
Long service life of anti-collision and slag prevention
Good thermal conductivity and fast cutting speed.
D32 Straw Hat Laser Nozzle 4mm Caliber Laser Engraving Machine Parts
| Type | Diameter | Height | Thread | Layer | Chromed | Caliber |
|
A |
32 |
15 |
M14 |
Single | × | 0.8-6 |
| 32 | Double | × | 0.8-6 | |||
| 32 | Single | √ | 0.8-6 | |||
| 32 | Double | √ | 0.8-6 | |||
|
B |
32 |
15 |
M14 |
Single | × | 2-3.5 |
| 32 | Double | × | 2-3.5 | |||
| 32 | Single | √ | 2-3.5 | |||
| 32 | Double | √ | 2-3.5 | |||
|
C |
32 |
15 |
M14 |
Single | × | 0.8-6 |
| 32 | Double | × | 0.8-6 | |||
| 32 | Single | √ | 0.8-5 | |||
| 32 | Double | √ | 0.8-6 | |||
| D | 12 | 10 | M8 | Single | × | 0.5 |
|
E |
10.7 |
22.2 |
/ |
Single | × | 2-3.5 |
| Double | × | 2-3.5 | ||||
| 23 | 15 | / | / | / | / | |
| 35.5 | 27.7 | / | / | / | / | |
|
F |
32 |
15 |
M14 |
Single | × | 0.8-4 |
| Double | × | 0.8-4 |
Contact us:
Mob/ Whatsapp +86 15253270037
E-mail: topbright@yeah.net
D32 Straw Hat Laser Nozzle 4mm Caliber Laser Engraving Machine Parts
Laser nozzle is a small part of the laser cutting machine, but it plays a very important role, the laser nozzles will have a great impact on the laser beam, the nozzle size allows only the beam through, can effectively avoid the work of possible problems. We provide variety sizes and types contact tip nozzles with large quantity in stock. Single and double layer, different apertures, for 1064nm fiber laser and also have types for Co2 laser machine.
