30x10 45x20 Ceramic Nozzle Water Jet Loom Parts Textile Machinery Spares

Ceramic Nozzle Water Jet Loom Parts Textile Machinery Spares

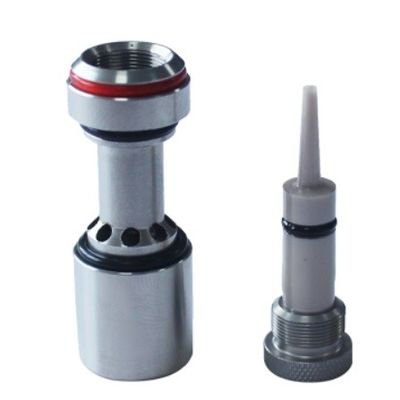

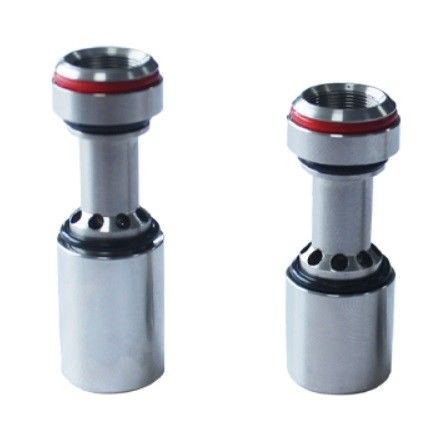

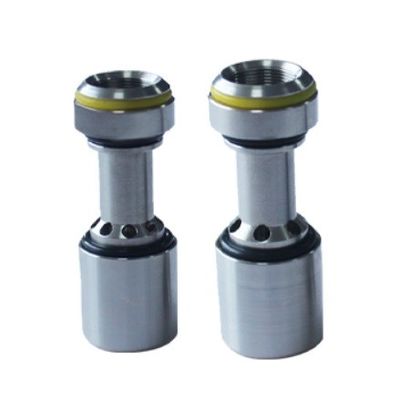

Ceramic nozzle developed for water jet loom

Size:  30x10, 45x20, 60x20, 75x40, 90x40, 90x60,

          75x40 enlarged 6mm, 90x40 enlarged 6mm

Contact us:

Mob/ Wsap +86 15253270037

E-mail: topbright@yeah.net

Each weft of the water jet loom is sprayed through a nozzle, the nozzle is an important part of a machine.

The precision ceramic nozzle developed by our company is characterized by stable water line and long service life.

The ceramic nozzle is a high-precision product composed of ceramic parts and stainless steel parts. Each part of the nozzle is finished. The main part of the ceramic nozzle is called the spray body, and the middle part of the spray body is composed of a 45 degree slope with eight equal inlet orifices

Loom machine uses high pressure jet water to carry the weft yarn and fly through the layers (upper and lower) to finish the weaving process. When the pump generates a flow of high pressure water, this water rushes to the nozzle which is designed with collective passage; this again adds pressure to the water; in the meantime, the weft yarn is inserted through the loom part ceramic nozzle, so together the high pressure water will carry the weft yarn and start on its trip.

A good loom ceramic nozzle must present high jet water flow and does not harm the weft, which otherwise will break the weft.
