Product Details:
|
| Reed Space: | 170 - 390cm | Drive: | Rush Start Motor |
|---|---|---|---|
| Weft Insertion: | Main And Sub-noules Combined System | Shedding: | Dobby, Cam |
| Let-off Flange Dia: | 800mm | Take-up Dia: | 600cm |
| Mob/Wsap: | +86 15253270037 | E-mail: | Topbright@yeah.net |
| Highlight: | JA93 Air Jet Loom,Smart Air Jet Loom,JA93 Fabric Weaving Machine |
||

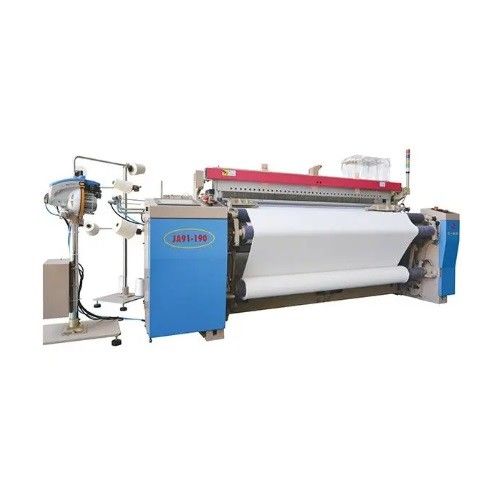

JA93 Smart Air Jet Loom Machine Weaving Machinery For Fabric Textile Industry
JA93 series Air Jet Loom is new generation, it is well-developed after years of efforts, its performance can be the first of today's international loom comparable. More reasonable frame and warp tensin control system enables high-speed heavy woven fabric more stable weft insertion system more energy efficient. JA93 series air-jet looms will be its superior performance to lead the Chinese manufacturing industry looms.
1. New super-stable rack
The air jet weaving loom with new rack connections increased rigidity,reducing rack deformation during operation, and enhance the stability of the whole operation is more suitable for high-speed heavy.
2. More support balanced beating
Sley with a power balance arm structure, increasing the beating force is reduced while the maximum level of vibration generated by beating, is to improve the performance of the important part of high speed weaving.
3. Overlapping Taub board structure
Changes need to be changed in the weaving varieties width, the structure can be easily adjusted on the right side brace, brace avoid truncation or replace cloth.
4. New rear spar strucrure
Achieve External easing drive, to facilitate the adjustment and maintenance; about through the tension sensing axis warp tension accurately transmitted to the tension control system; shortened tension Liang length, to prevent weaving heavy fabrics caused by bending of the width direction of the warp tension difference.
Contact us:
Mob/ Whatsapp +86 15253270037
E-mail: topbright@yeah.net
JA93 air jet loom specifications
| Item | Specification | Optional | |
Reed space |
Nominal | 170.190.210.230.250.260.280.300.310.320.340.360.390cm | |
| Useful reed width | Same as nominal width maximum reduction 60cm(190-250crn) Same as nominal width maximum reduction 80cm(280cm) |
||
| Working range | Short yam:100S/1 ~5.8S/1 | ||
| Weft seledion | 2-color mixing, 2-color at-will. 4colors. 6colors | ||
|
Drive |
Rush start motor | ||
| Programmed and direet drive &stop mechanism by electromagnet brake | |||
| Direct drive motor (directly drive the loom, reduce the energy loss of belt drive, and reduce the weaving cost) | |||
|
Weft Insertion |
Main and sub-noules combined system | Stretching nozzle | |
| Profile reed | |||
| Auxiliary main nozzle | Double swing main jet | ||
| Double fixed main spray | |||
| Shedding | Positive cam shedding: shaft number up to 10 | ||
| Dobby shedding: shaft number up to 16 | |||
| let-off | Electronic let-off(el-o)with kickback funcbon | ||
| Positive easing | |||
| Flange Dia | 800mm | 914 ,1000mm | |
|
|
MTU:mechanical take-up | ETU electronic take-up | |
| Max take-up Dia | 600cm | ||
| Pick density | MTU:6.6 ~80.5 pickes/cm | ||
| (16.7 ~204.4pickes/inch) | |||
| Length count | board display,take the function of fixed measure stop | ||
| Temple | floor-mounted | ||
|
Beating |
Crank type beating,multiple sley sword beating 4 links(Reed space 190 ~280cm) 6links(Reed space280 ~360cm) Intermediate rocking supporter |
||
| Measuring/storing | FDP Free drum pooling | ||
| Filling supply stand | Floor-mounted for 4 parckages(2colors),Floor-mounted for 8 parckages(4colors) | ||
| Selvedge | Planetary gear motion(lenoselvedge of middle cord yam) | Electronic edge | |
| Waste filling removal | Catch cord type | ||
| Cutter | Mechanical cutter | Electronic scissors | |
| Lubrication | Oil bath system for main drive parts,centralized lubrication(manual grease) | ||
|
Auto-stop motion |
Weft yam | Reflective weft feeler | |
| Warp yam | Electric feeling system | ||
| other | Stop motion for selvage and catch cord yam | ||
| Stop cause indication | Message on board, 4-color lamp for indicating cause |
||
| Middle scissors | Mechanical type(Tisser double width) |
