Product Details:
|
| Laser Power: | 3kw/4kw/6kw | Max Cutting Speed: | 30m/min |
|---|---|---|---|
| Driving System: | Servo Motor | Function: | Cutting Metal Pipe |
| Tube Length: | 6000~12000mm | Graphic Format Supported: | AI, PLT, DXF, BMP |
| Highlight: | Sheet And Tube Laser Cutting Machine,Tube Laser Cutting Machine 12038HT,3kw Tube Laser Cutting Machine |
||

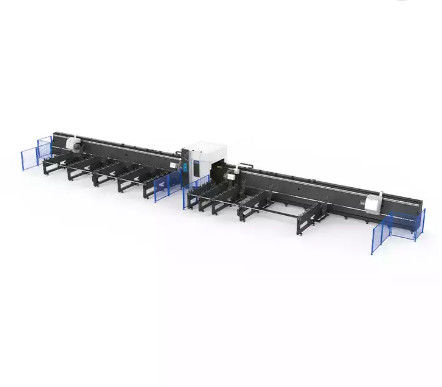

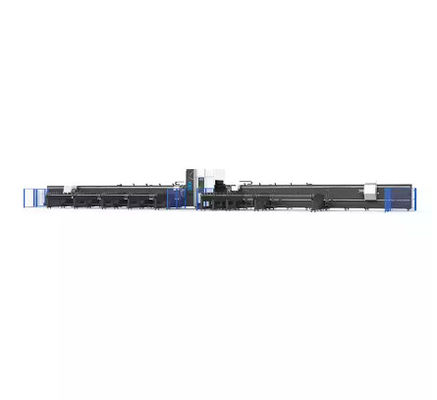

Ultra Heavy Four-Chuck Tube And Pipe Laser Cutting Machinery 12038HT
|
Model
|
Ultra Heavy Four-chuck Tube Laser Cutting Machine
|
|
Laser Power |
3000W/4000W/6000W
|
|
Pipe Processing Range(mm)
|
12000* φ180~380
(Square tube: 180*180~250*250) |
|
Maximum Speed
|
30m/min
|
|
Maximum Rotational Speed
|
30r/min
|
|
Positioning Accuracy
|
±0.05mm
|
|
Repeated Positioning
|
±0.02mm
|
|
Maximum Acceleration
|
0.3G
|
|
Table Maximum Load(KG)
|
1000
|
|
Power Parameters
|
Three-phase AC 380V 50Hz
|
|
Protection Level of Total Power Supply
|
IP54
|
It can process round pipe, square pipe, rectangular pipe, L, U and H profiles
Dimension: round pipe Φ180mm-380mm,square pipe side length 180*180mm-250*250mm
Single tube maximum weight: 1T
With advanced CNC bus system applied to 4-chuck delivering structure and Tubest 3D nesting software,
12038HT achieves most efficiency and minimum waste.
Application industries: Ultra heavy tube cutting machine is widely used in aerospace, metal fabrication, machine manufacturing, rail transport, automobile manufacturing and food machinery.
