2000w Metal Sheet Laser Cutting Machine 3015G CNC Fiber Laser Cutter

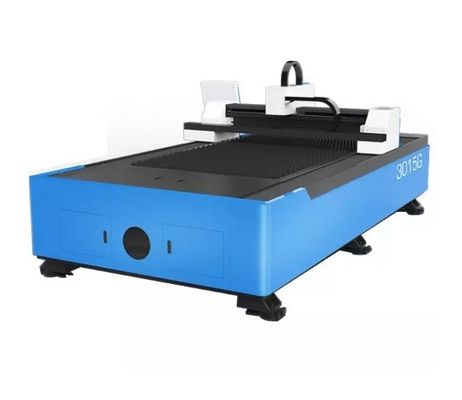

Large Image : 2000w Metal Sheet Laser Cutting Machine 3015G CNC Fiber Laser Cutter

Product Details:

Place of Origin:	China
Brand Name:	QTC
Certification:	ISO
Model Number:	3015G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	export packaging
Delivery Time:	10-15 days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	500 sets per month

Contact Now

2000w Metal Sheet Laser Cutting Machine 3015G CNC Fiber Laser Cutter

Description

Application:	Metal Sheet Cut	Condition:	New
Cutting Area:	3000mm*1500mm	Laser Source Brand:	RAYCUS
Laser Type:	Fiber Laser	Transmission:	Precise Pinion And Rack
Highlight:	2000w metal sheet laser cutting machine , Metal Sheet Laser Cutting Machine 3015G , 3015G CNC Fiber Laser Cutter

Open Type Metal Sheet Laser Cutting Machine 3015G CNC Fiber Lazer Cutter

3015G metal sheet laser cutting machine is used to cut mild steel, stainless steel, aluminum alloy, brass and other steel; Application in automobile industry, sheet metal industry, furniture industry, advertising industry, etc.

2000w Metal Sheet Laser Cutting Machine 3015G CNC Fiber Laser Cutter 0

Metal Laser Cutter Machine

1) Single working table

2) Cut metal sheet,metal tube not available

3) 1kw/1.5kw/2kw/3kw/4kw available

Parameter of Laser Cutting Machine for Steel

Model	3015G/4015G/4020G/6015G/6020G metal laser cutting machine
Working Area	30501525/40501525/40502020/60501525/6050*2020mm
Laser Power(kw)	1/1.5/2/3/4
Maximum Speed(m/min)	80
Maximum acceleration(g)	0.8
X/Y Axis positioning accuracy(mm/m)	±0.05
X/Y Axis repeated positioning accuracy(mm)	± 0.02

Advantage

High Precision Welding Bed

Auto Oil-filling

Cost-Effective

High quality carbon structural steel welding bed

High quality carbon steel welding bed, high temperature annealing treatment, reduce the internal stress and deformation, its rigidity is strong, high structural stability.

we optimize the structure, perfectly integrate the workbench and bed, and directly put the knife blade on the bed to avoid shaking.

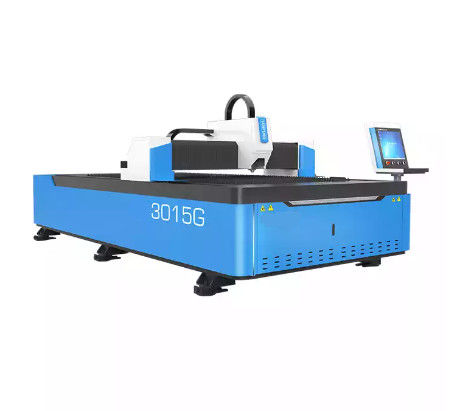

2000w Metal Sheet Laser Cutting Machine 3015G CNC Fiber Laser Cutter 1

Aerospace standards cast aluminum beam

High accuracy, good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

High Precision Rack and Pinion

Double-rack, double-driver;rack, guide and motor drive all use the international first-line brand

Use laser interferometer to test to ensure cutting accuracy;

Use the milling cutter to process the ruler more than 5 times to ensure the accuracy of the ruler, the middle of the guide rail and the ruler An adjustment block is installed for adjustment of accuracy.
