Product Details:
|
| Protection Level Of Total Power Supply: | IP54 | Table Maximum Load: | 700kg |
|---|---|---|---|
| Cooling Mode: | Water Cooling | Cutting Speed: | 80m/min |
| Working Area: | 3000mmX1500mm | Laser Power: | 1000W /1500W/ 2000W / 3000W |
| Highlight: | 3000W CNC Fiber Laser Cutter Machine,2000W CNC Fiber Laser Cutter Machine,2000w fiber laser cutting machine |
||

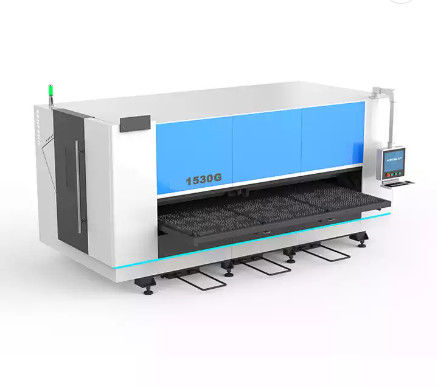

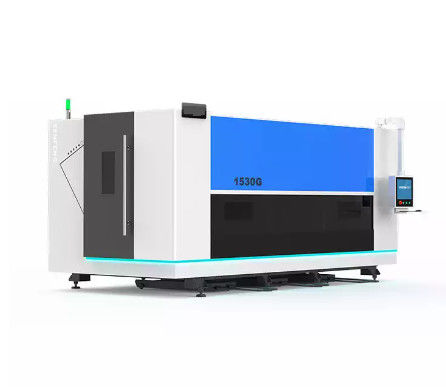

European and American Standard CNC Fiber Laser Cutter Machine with Single Table for Cutting Metal Sheet
|
Model
|
European and American Standard CNC Fiber Laser Cutter Machine with Single Table for Cutting Metal Sheet
|
|
Laser Power |
1000W/1500W/2000W/3000W
|
|
Work Area
|
3000*1500mm or 118.11*59.06inches
|
|
X-axis Travel
|
3000mm/118.11inches
|
|
Y-axis Travel
|
1500mm/59.06inches
|
|
Z-axis Travel
|
120mm/4.72inches
|
|
Positioning Accuracy
|
±0.05mm
|
|
Repeated Positioning
|
±0.02mm
|
|
Maximum Speed
|
80m/min
|
|
Maximum Acceleration
|
0.8G
|
|
Table Maximum Load(KG)
|
700
|
|
Outline Size(mm)
|
4890x2300x2290
|
|
Power Parameters
|
Three-phase AC 380V 50Hz
|
|
Protection Level of Total Power Supply
|
IP54
|
Cutting Materials
Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.
