Product Details:
|
| Weight: | 1750kg | Processed Materials: | CS/SS/Aluminium/Galvanised Steel/Brass |
|---|---|---|---|
| Working Area: | 1300*1300mm | Cutting Thickness: | 0.4-14mm |
| Cutting Speed: | 0-30m/min | Power: | 1kw-2kw |
| Dimensions: | 2985*2160*2000mm | Voltage: | 380V/50HZ |
| Highlight: | 1313G CNC Fiber Laser Cutting Machine,CNC Fiber Laser Cutting Machine 1000W,Fiber Laser Cutting Machine 1000W 1500W |
||

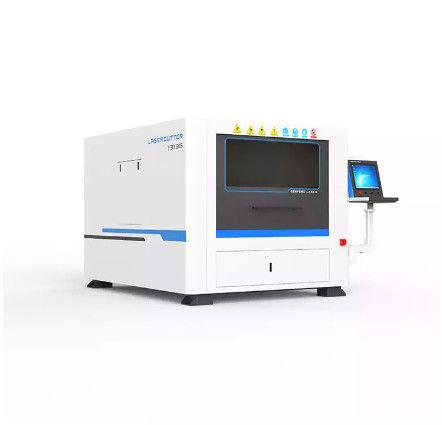

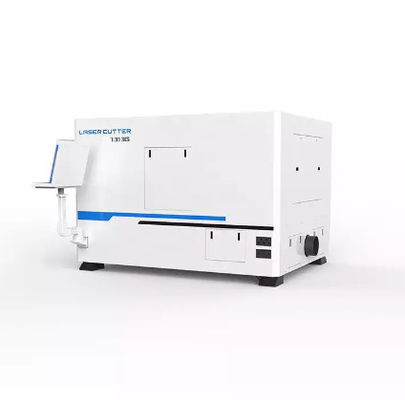

Economic 1313G Fiber CNC Laser Cutting Machine 1000W 1500W 2000W
| Model | 1313G |
| Laser Type | Fiber Laser |
| Laser Power | 1000W/1500W/2000W |
| Laser Wave Length | 1060nm-1080nm |
| Stroke of X-Axis | 1300mm |
| Stroke of Y-Axis | 1300mm |
| Stroke of Z-Axis | 120mm |
| Maximum Running Speed | 100 m/min |
| Max Acceleration | 1G |
| Position Accuracy | ±0.05mm/m |
| Repeated Position Accuracy | ±0.03mm/m |
| Working Life of Fiber Module | More than 100000 hours |
| Position Type | Red dot |
| Working Voltage | 380V/220HZ |
| Total Power Protection Level | IP54 |
| Auxiliary Gas | Oxygen, Nitrogen, Compressed Air |
| Work Table | Blades |
| Dimensions | 2985*2160*2000mm |
| Weight | 1750kg |
