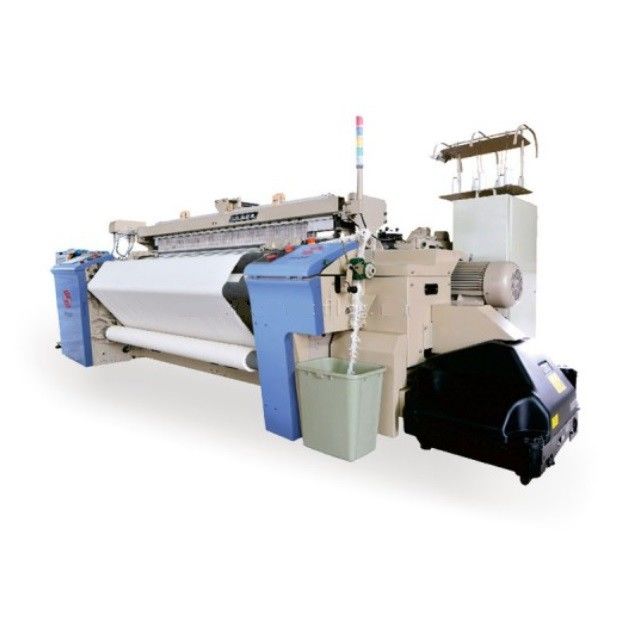

280cm Air Jet Loom Machine JA92 High Speed Power Loom Machine

Item

Specification

Optional

Reed space

Nominal

190.210.230.250.280.340.360cm

Useful reed width

Same as nominal width maximum
reduction 60cm (190-250crn)
Same as nominal width maximum reduction 80cm (280cm)

Working range

Short yam:100S/1 ~5.8S/1

Weft seledion

2-color mixing, 2-color at-will. 4colors. 6colors

Drive

Rush start motor

Programmed and direet drive &stop mechanism by electromagnet brake

Direct drive motor (directly drive the loom, reduce the energy loss of belt drive, and reduce the weaving cost)

Weft Insertion

Main and sub-noules combined system

Stretching nozzle

Profile reed

Auxiliary main nozzle

Double swing main jet

Double fixed main spray

Shedding

Positive cam shedding: shaft number up to 10

Dobby shedding: shaft number up to 16

let-off

Electronic let-off(el-o)with kickback funcbon

Positive easing

Flange Dia

800mm

914 ,1000mm

Take-up

MTU:mechanical take-up

ETU electronic take-up

Max take-up Dia

600cm

Pick density

MTU:6.6 ~80.5 pickes/cm

(16.7 ~204.4pickes/inch)

Length count

board display,take the function of fixed measure stop

Temple

floor-mounted

Beating

Crank type beating,multiple sley sword beating
4 links(Reed space 190 ~280cm)
6links(Reed space280 ~360cm)
Intermediate rocking supporter

Measuring/storing

FDP Free drum pooling

Filling supply stand

Floor-mounted for 4 parckages(2colors),Floor-mounted for 8 parckages(4colors)

Selvedge

Planetary gear motion(lenoselvedge of middle cord yam)

Electronic edge

Waste filling removal

Catch cord type

Cutter

Mechanical cutter

Electronic scissors

Lubrication

Oil bath system for main drive parts,centralized lubrication(manual grease)

Auto-stop motion

Weft yam

Reflective weft feeler

Warp yam

Electric feeling system

other

Stop motion for selvage and catch cord yam

Stop cause indication

Message on board,
4-color lamp for indicating cause

Middle scissors

Mechanical type(Tisser double width)
