Upper And Lower Air Jet Loom JA92 Textile Weaving Machine For Double Sided Fabric

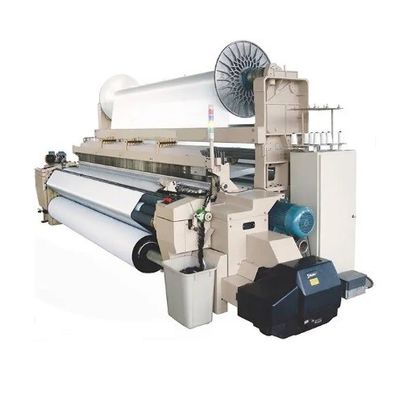

JA92 Upper And Lower Double Beams Air Jet Loom Textile Weaving Machine For Double-Sided Fabric

Contact us:

Mob/ Wsap +86 15253270037

E-mail: topbright@yeah.net

The newly developed product JA92 upper and lower dual beams air jet loom is designed for textile enterprise to developed high value-added double-faced fabric and color fabric, this air-jet loom is designed with wide reed width, high speed, wide range of fabric, strong adaptability (widely used in cotton, wool, silk, flax, chemical fiber etc. each textile industrial), high efficiency, high automatic level, stable and reliable performance etc. Helping textile enterprise solve the problem when develop high value-added double-sided fabric which is hard to sizing and weaving. This air jet weaving loom is usable for textile industrial developing top grade fabric (like top grade black-out cloth, top grade home textile fabric, color fabric), improve fabric quality, reduces the cost of labor, increase economic efficiency.

The airjet loom performance : nominal reed width is 190cm～360cm (can be customized with request), the diameter of upper and lower warp beam flange is Ф800mm (or Ф914mm), the rotate speed of main shaft is 400-750rpm (the actual speed is based on the specification of the fabric), the range of reed width is 0-800mm, suitable for weaving filament and spun, the diameter of roller is 550mm, upper and low beam warp servo control, electronic dobby shedding (16 shaft), electronic take up (or mechanical take up), 10.4" touch screen with intelligent computer control system.
