Product Details:
|
| Speed: | 500 - 700rpm | Weft Density Range: | 0.08-10 Pcs/cm |
|---|---|---|---|
| Motor Power: | 1.5-2.0KW | Applied Fabric: | Cord, Gauze |
| Wsap/Mob: | +86 15253270037 | E-mail: | Topbright@yeah.net |
| Highlight: | Small Weft Density Air Jet Loom,JA11 Air Jet Loom machine,Loom Machine For Weaving Cloth |
||

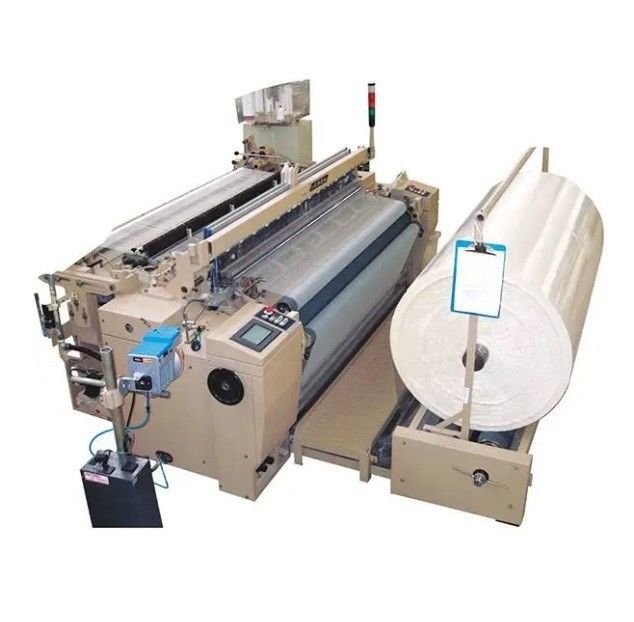

JA11 Small Weft Density Special Air Jet Loom For Weaving Medical Gauze And Cord Fabric
Contact us:
Mob/ Wsap +86 133 5639 6021
E-mail: topbright@yeah.net
JA11 small weft density special top grade air jet loom is a high speed airjet loom specially designed for sparse weft density weaving characteristics, nominal reed width is 190cm-230cm, the range of reed width is 0-800mm, speed is 500-750rpm (actual speed based on the specification of the fabric), high efficiency, weaving good quality fabric (with good quality of cloth edge formation), the diameter of beam flanges is Ф800mm (or Ф914mm, Ф1000mm), the yarn count adapt to a wide range (filament, spun), weft density range from 0.08-10 pcs/cm, out machine extra take up device (diameter can reach 1400mm), the power of main motor 1.5-2.0KW, reduce energy consumption, reduce labor cost, this air-jet loom is the best equipment for weaving medical gauze and cord fabric.
