Product Details:
|
| Cooling Mode: | Water Cooling | Cutting Speed: | 130m/min |
|---|---|---|---|
| Laser Type: | Fiber Laser | Applicable Material: | Metal |
| Cutting Area: | 12000*3000mm | Machinery Test Report: | Provided |
| Email: | Topbright@yeah.net | Mob/Wsap: | +86 15253270037 |
| Highlight: | CNC Fiber Laser Metal Cutting Machine,Laser Metal Cutting Machine 6KW,Laser Metal Cutting Machine 36KW |
||

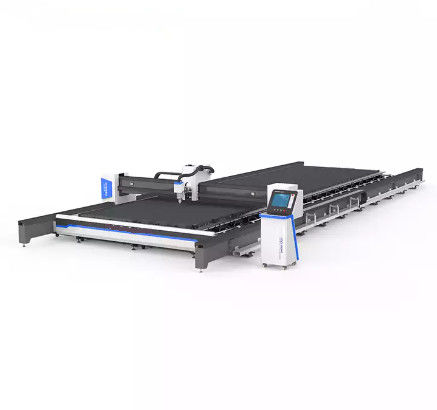

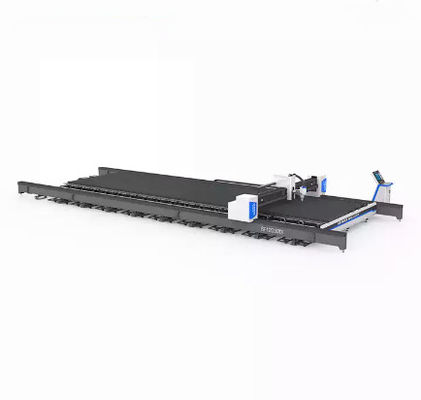

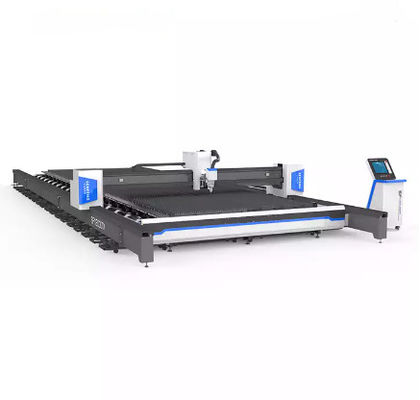

Ultra Large Bevel CNC Fiber Laser Metal Cutting Machine 12030TX
|
Model
|
Ultra Large Bevel Fiber Laser Cutting Machine 12030TX
|
|
Laser Power |
6KW-36KW
|
|
Working Area(mm)
|
12000*3000
|
|
X-axis Travel
|
3000mm
|
|
Y-axis Travel
|
12000mm
|
|
Z-axis Travel
|
320mm
|
|
Maximum Speed
|
130m/min
|
|
X/Y Axis Positioning Accuracy
|
±0.1/10000mm
|
|
A/B Axis Positioning Accuracy
|
±0.02mm
|
|
Maximum Acceleration
|
1.0G
|
|
Bevel Angle
|
±45°
|
|
Table Maximum Load(KG)
|
8500
|
|
Outline Size(mm)
|
15226*5791*1887
|
|
Power Parameters
|
Three-phase AC 380V 50Hz
|
|
Protection Level of Total Power Supply
|
IP54
|
