Product Details:
|
| Mob/Wsap: | +86 15253270037 | Application: | Laser Cutting Machine |
|---|---|---|---|
| Wavelength: | 1064nm | Transmittance: | 99.5% |
| Coatings: | AR Coating | Email: | Topbright@yeah.net |
| Highlight: | Dia 22.35mm Laser Optic Lens,Thk4mm Fiber Laser Protective Window,Laser Optic Lens Thk 4mm |
||
Fiber Laser Optics Lens With Good Quality Diameter 22.35*4mm Protective Lens

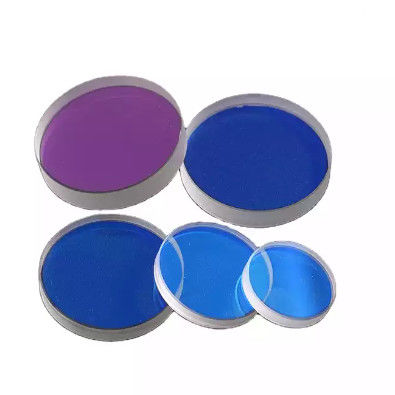

Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%
Dia 22.35mm Laser Optic Lens Thk4mm Fiber Laser Protective Window
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica(FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
Contact us:
Mob/ Wsap +86 133 5639 6021
E-mail: topbright@yeah.net
Dia 22.35mm Laser Optic Lens Thk4mm Fiber Laser Protective Window
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |
