Product Details:
|
| Material: | Quartz Fused Silica | Application: | Laser Cutting Machine |
|---|---|---|---|
| Wavelength: | 1064nm | Transmittance: | 99.5% |
| Mob/Wsap: | +86 15253270037 | E-mail: | Topbright@yeah.net |
| Highlight: | Original JGS1 High Power Laser Lenses,High Power Laser Lenses D30mm,D30mm Lens For Laser Cutting Machine |
||
D30*7 Original JGS1 Protective Lens Laser Protective Windows Optical Lenses Laser Head Parts
Original JGS1 High Power Laser Lenses D30mm Lens For Laser Cutting Machine
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica (FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
Original JGS1 High Power Laser Lenses D30mm Lens For Laser Cutting Machine
Product Description

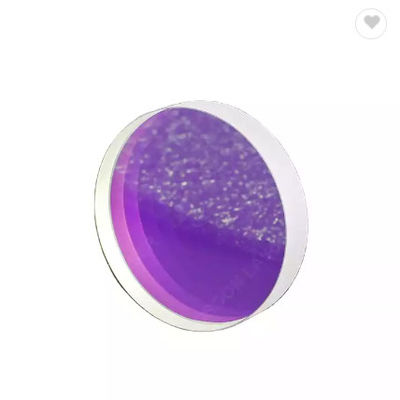

Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%
Contact us:
Mob/ Whatsapp +86 15253270037
E-mail: topbright@yeah.net
Original JGS1 High Power Laser Lenses D30mm Lens For Laser Cutting Machine
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |
