Product Details:
|
| Material: | Quartz Fused Silica | Application: | Laser Cutting Machine |
|---|---|---|---|
| Mob/ Wsap: | +86 15253270037 | Transmittance: | 99.5% |
| Coatings: | AR Coating | E- Mail: | Topbright@yeah.net |
| Highlight: | 1090nm Laser Protection Window,1010nm Laser Protection Window,2mm Thickness Laser Lens |
||
22*2mm Laser Protective Glass Protection Windows For Fiber Lazer Cutter Head
1010nm 1090nm Laser Protection Window 2mm Thickness Laser Lens
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |
1010nm 1090nm Laser Protection Window 2mm Thickness Laser Lens

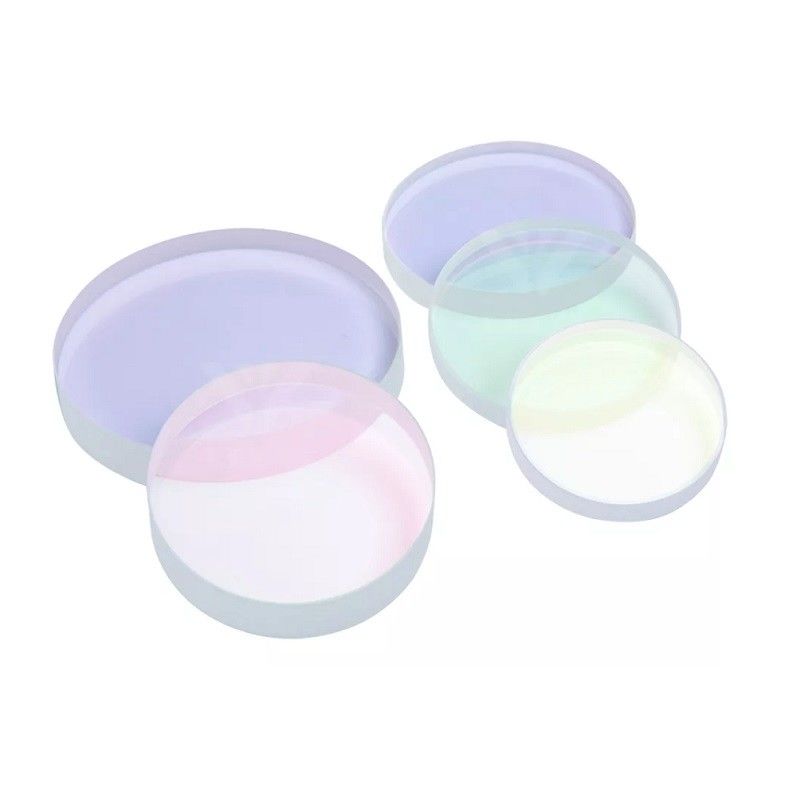

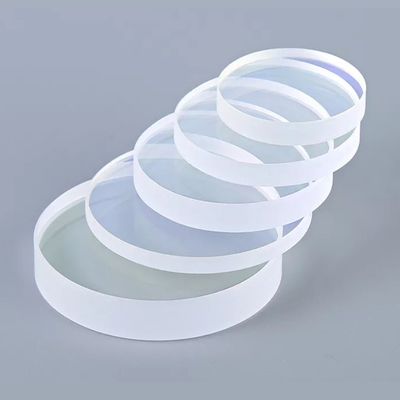

Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica (FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
