Product Details:
|
| Material: | Quartz Fused Silica | Application: | Laser Cutting Machine |
|---|---|---|---|
| Transmittance: | 99.5% | Coatings: | AR Coating |
| E-mail: | Topbright@yeah.net | Mob/ Wsap: | +86 15253270037 |
| Highlight: | JGS1 Fiber Laser Protective Lens,50mm JGS1 Fiber Laser Lens,d50 Fiber Optic Focusing Lens |
||

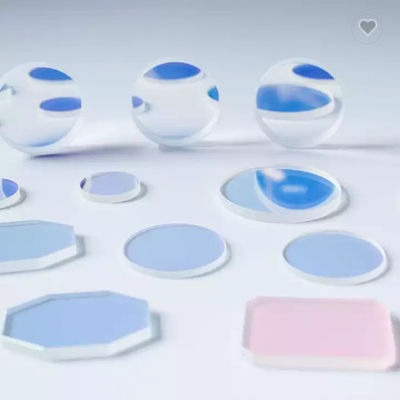

Lazer Protection Glasses 50*1.5mm JGS1 Fiber Laser Protective Windows
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |

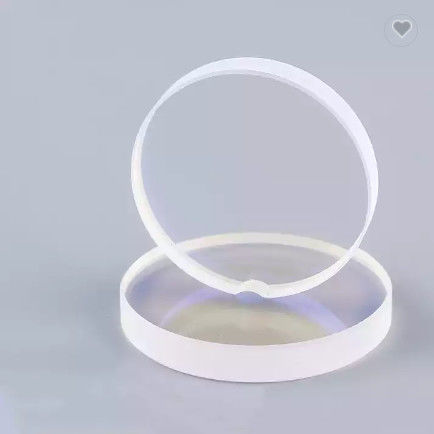

50mm JGS1 Fiber Laser Protective Lens D50 Fiber Optic Focusing Lens
Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica (FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
