Product Details:
|
| Material: | Quartz Fused Silica | Application: | Laser Cutting Machine |
|---|---|---|---|
| Wavelength: | 1064nm | Transmittance: | 99.5% |
| Mob/Wsap: | +86 15253270037 | E-mail: | Topbright@yeah.net |
| Highlight: | Quartz Fiber Laser Protective Lens,Dia20mm Laser Optical Lens,Laser Protective Lens Dia20mm |
||
Quartz Customizable Fiber Laser Protective Lens For High Power Laser Machine Cutting
Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%

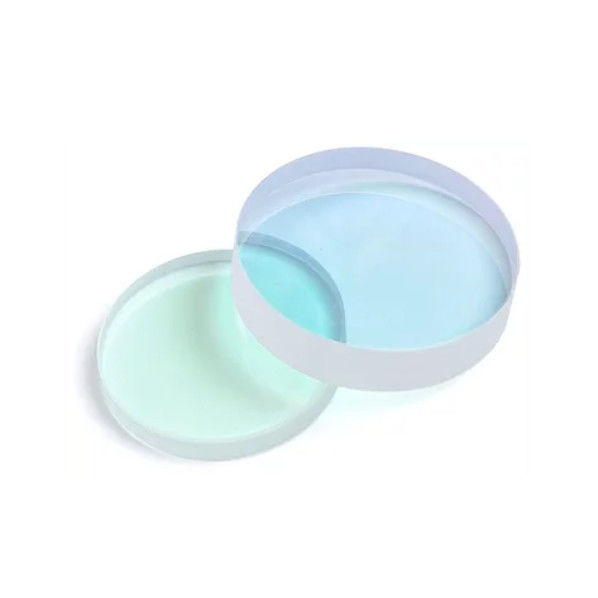

Quartz Fiber Laser Protective Lens Dia20mm Laser Optical Lens
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica (FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
Contact us:
Mob/ Whatsapp +86 15253270037
E-mail: topbright@yeah.net

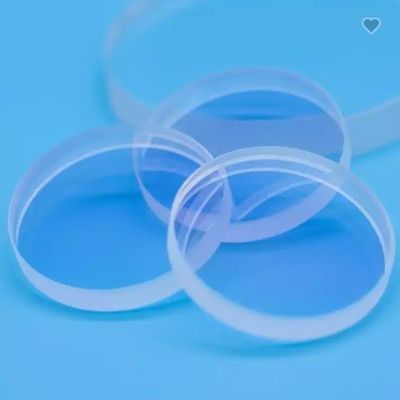

Quartz Fiber Laser Protective Lens Dia20mm Laser Optical Lens
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |
