Product Details:
|
| Material: | Quartz Fused Silica | Application: | Laser Cutting Machine |
|---|---|---|---|
| Mob/Wsap: | +86 15253270037 | Transmittance: | 99.5% |
| Coatings: | AR Coating | E-mail: | Topbright@yeah.net |
| Highlight: | WSX Fiber Laser Protective Lens,Precitec WSX Fiber Laser Lens,34mm Laser Cutter Lens |
||

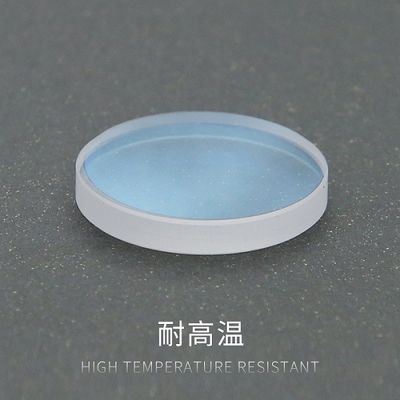

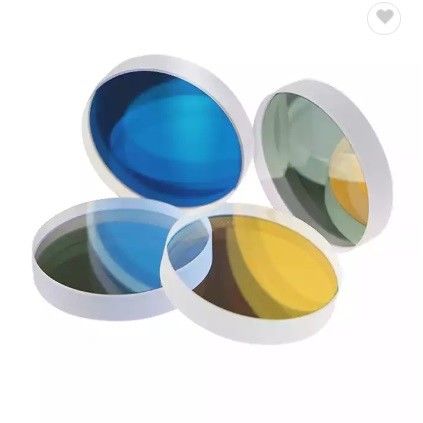

Fiber Laser Protective Lens Used For Empower Precitec WSX Laser Protective Glasses
Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%
Precitec WSX Fiber Laser Protective Lens 34mm Laser Cutter Lens
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |
Precitec WSX Fiber Laser Protective Lens 34mm Laser Cutter Lens
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica (FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
